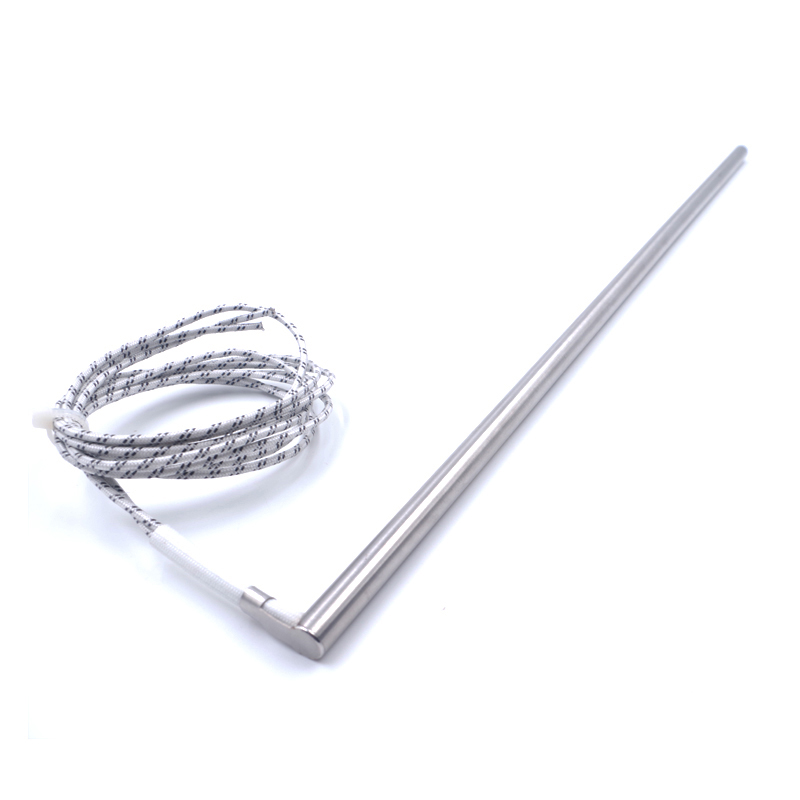

L type(right angle) cartridge heater

Cartridge heaters are used for heating Dies, Moulds, Platens and various other applications demanding localised heating and are suitable for temperatures up to 800℃.

Cartridge heater.pdf

stock sizes

customized

Description

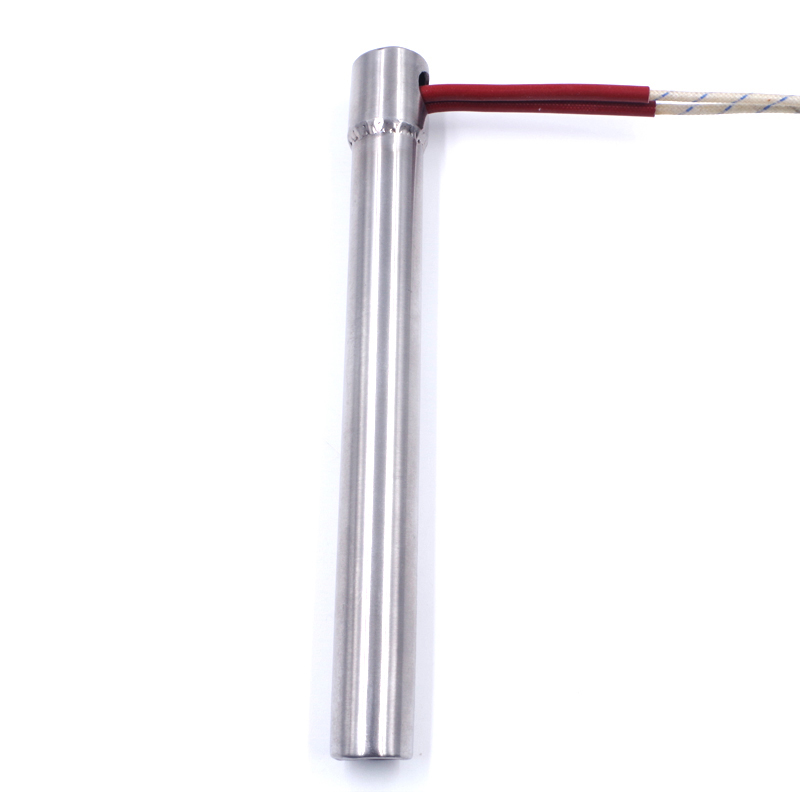

L type Cartridge Heater

cartridge heaters provide excellent heat transfer and long life. Cartridge heaters are designed for a push in fit into holes of nominal diameters and are manufactured from the highest quality materials. Cartridge heaters are used for heating Dies, Moulds, Platens and various other applications demanding localised heating and are suitable for temperatures up to 800℃.

Customized
Cartridge heaters are designed for push fit into holes of nominal diameters. Cartridge heaters are used for heating Dies, Molds, Platens and various other applications demanding localized heating.
Cartridge heaters are available in metric and imperial sizes 6mm(1/4″) to 40mm(1.5″) diameters, Low, Medium, and High watt density.

Cartridge heater Anatomical chart
Cartridge heater Anatomical chart

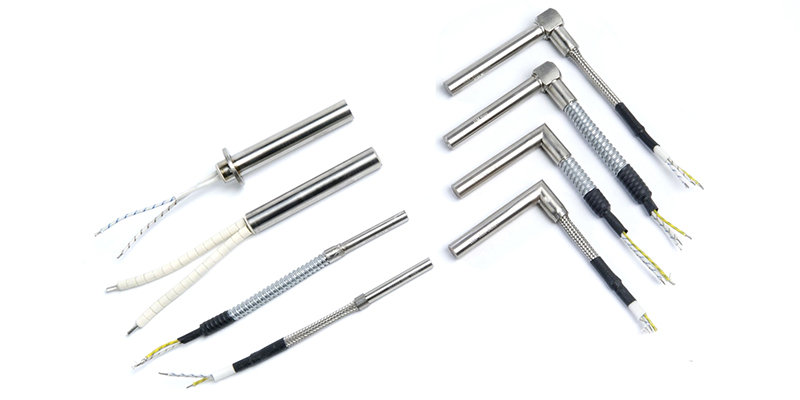

End termination type options

Cartridge heater End termination type
Cartridge heater End termination type

Customized
